Oracle Database Local Installation Wallet For HTTPs Calls

This should be used only for local installations, if you have OCI ATP, wallet should work out of the box.

• Access to the database server
• download the full root certs from the website for Https calls
• upload certs to your database server with SCP or other way

I do know that there is a gitRepo that does a download of all certs there are, however It only worked for my Docker DB instance , not a DB in a VM. Therefore, I have sticked to this manual way.

***  update ***
Upbove mentioned gitRepo, does work. However.
after create the wallet, the setting should be like this.

begin
  apex_instance_admin.set_parameter('WALLET_PATH'
                                   ,'file:/opt/oracle/my_wallets');
  apex_instance_admin.set_parameter('WALLET_PWD'
                                   ,NULL);
  commit;
end;
/

Read here for more. https://docs.oracle.com/en/database/oracle/apex/23.1/aeapi/Available-Parameter-Values.html#GUID-75DCF658-5A76-4E81-B12D-04E254A3D80A search “The password associated with the wallet. Use an empty/null value for auto-login wallets”

Create Wallet

!! use user Oracle at all times

$ sudo su - oracle
$ cd /opt/oracle
$ mkdir my_wallets
$ orapki wallet create -wallet /opt/oracle/my_wallets -pwd WalletPasswd123 -auto_login

If error orapki command not found

if you run a different version, the third command can be different. For exmple ../18c/..

$ export ORACLE_SID=XE
$ export ORAENV_ASK=NO
$ . /opt/oracle/product/21c/dbhomeXE/bin/oraenv

https://docs.oracle.com/en/database/oracle/oracle-database/21/xeinl/installing-oracle-database-free.html#GUID-A5FCC804-5786-4B4B-B1B4-60E36E80B73F

Add Wallet

Assume you have SCP the .pem file into /tmp folder

$ orapki wallet add -wallet /opt/oracle/my_wallets -trusted_cert -cert "/tmp/mycer.pem" -pwd WalletPasswd123

Settings in Database

Run this code in SYS

begin
  apex_instance_admin.set_parameter('WALLET_PATH'
                                   ,'file:/opt/oracle/my_wallets');
  apex_instance_admin.set_parameter('WALLET_PWD'
                                   ,'WalletPasswd123');
  commit;
end;
/

Or setting the wallet in APEX Internal workspace -> manage instance -> instance settings -> wallet

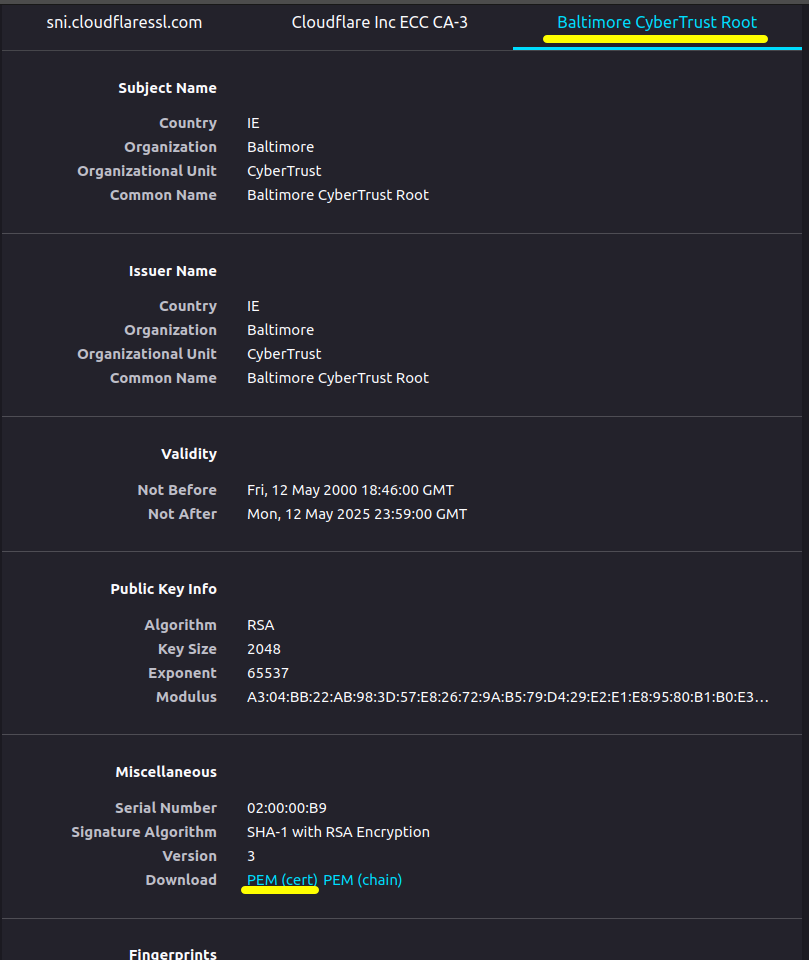

To Download Wallet

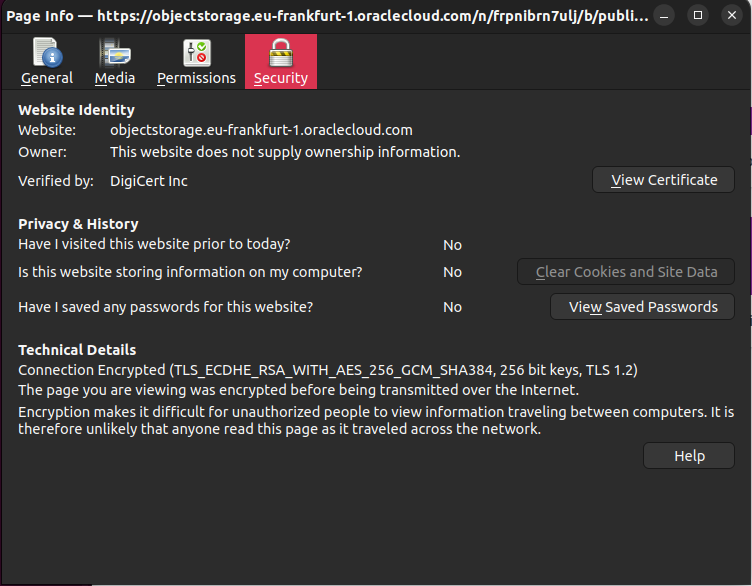

I recommand using firefox
